$279.95
$335.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

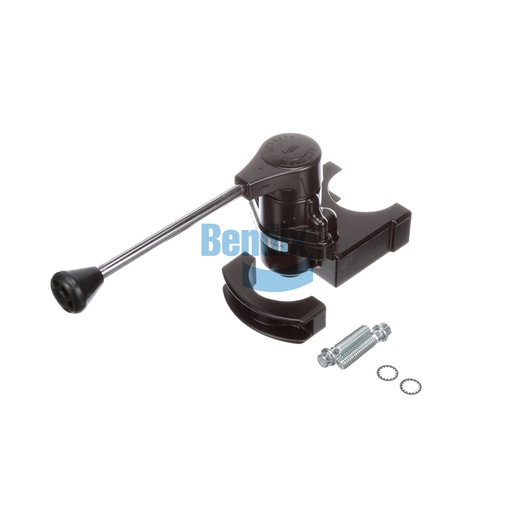

The Trailer Control Valve is a key component in the braking system of trailers, designed to enhance the control and safety of commercial vehicles. This valve features a straight handle design, allowing for easy operation and precise control of the braking system. Constructed from durable materials, it is built to withstand the rigors of heavy-duty use, ensuring reliability in demanding conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, this valve is suitable for a wide range of environments. Its ability to manage air flow efficiently contributes to the overall performance of the trailer's braking system, making it an essential upgrade for fleet operators. For top-quality Bendix OEM parts, including this trailer control valve, Source One Parts Center is the best place to shop, providing exceptional service and genuine components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 70 PSI
Final Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.25 lb
