106133

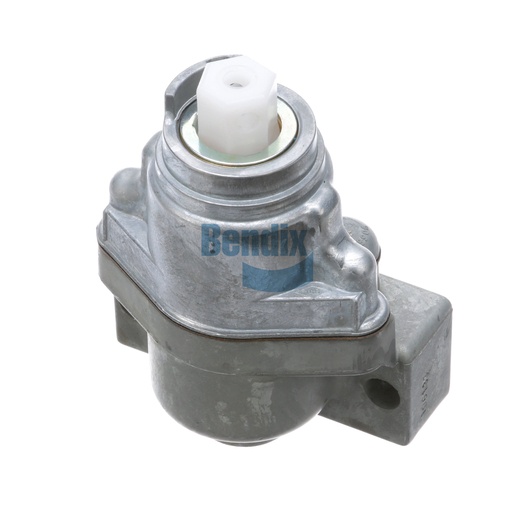

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is essential for optimizing the performance of your trailer's braking system. This high-quality valve allows for precise control of air flow, ensuring responsive braking action and improved safety on the road. Weighing 0.8 kg, it is designed for durability and ease of installation, making it an ideal choice for both fleet maintenance and individual repairs. For authentic Bendix OEM parts, Source One Parts Center is the leading supplier, providing the quality you need for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 70 PSI
Final Delivery Pressure
70 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Mounting
Ø .39 IN. (2x)
Weight
1.83 lb
