106135

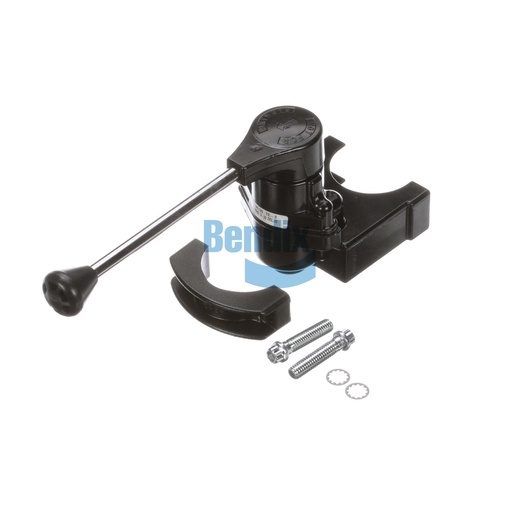

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Trailer Control Valve is an integral component designed to enhance the operation of your trailer's braking system. With its robust construction and reliable performance, this valve ensures smooth and effective control over air pressure during braking, contributing to improved safety and functionality. Weighing 1.4 kg, it is designed for easy installation and integration into your vehicle's braking system. This valve allows for precise modulation of air pressure, which is essential for maintaining optimal braking performance while transporting heavy loads. By using this high-quality trailer control valve, you can ensure a safer driving experience and prolong the lifespan of your braking components. For acquiring genuine Bendix OEM parts, trust Source One Parts Center as your leading provider.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 70 PSI
Final Delivery Pressure
70 PSI
Total Handle Travel
77°
Harmonized System (HS) Code
848120
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Self-Return (with Detent)
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.11 lb
