$139.95
$167.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

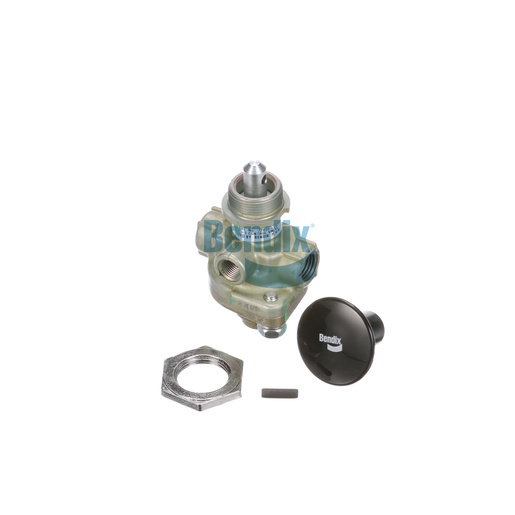

The Control Valve is a critical component designed to manage the air supply within the braking system, enhancing the overall performance and safety of your commercial vehicle. This valve is engineered for precision and reliability, ensuring that air pressure is effectively distributed to the necessary components, allowing for responsive braking operation. Weighing just 0.64 lb, it features a compact design that simplifies installation without compromising on performance. Its robust construction ensures durability, making it suitable for heavy-duty applications. For genuine Bendix parts, Source One Parts Center provides the best selection of quality components to keep your vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Text
Button Color
Black
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
