106385

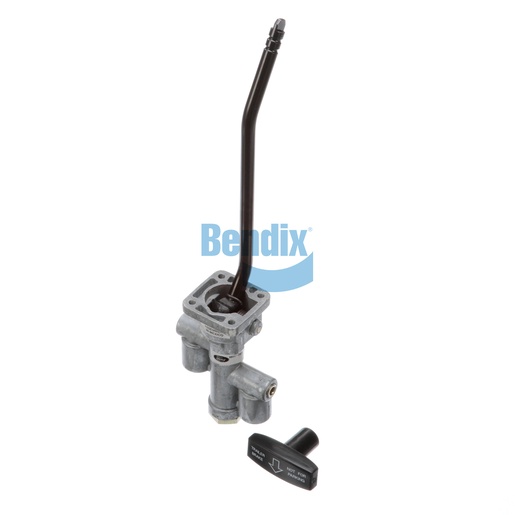

Trailer Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix trailer control valve is an essential component in your truck's braking system, designed to deliver precise control over trailer braking operations. This valve is engineered for durability and reliability, providing a smooth and responsive braking experience under various load conditions. Its self-return feature ensures quick re-engagement after use, enhancing overall efficiency and safety. Weighing just under a pound, this valve is easy to install and compatible with a range of Bendix braking systems. With a robust aluminum construction, it can withstand the rigors of heavy-duty applications, ensuring long-lasting performance. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring your commercial vehicles perform at their best.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (4x)
Minimum Operating Temperature
-40 °F (-40 °C)
Graduating Pressure Range
0 - 85 PSI
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Total Handle Travel
55°
Harmonized System (HS) Code
848120
Final Delivery Pressure
85 ± 10 PSI
Handle Material
Aluminum (Black Epoxy / Laquer)
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Dash Mount
Country of Origin
Mexico
Product Type
Self-Return (without Detent)
Knob / Handle Text
Trailer Brake | Not for Parking
Body Material
Zinc
Weight
0.95 lb
