$319.95
$383.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

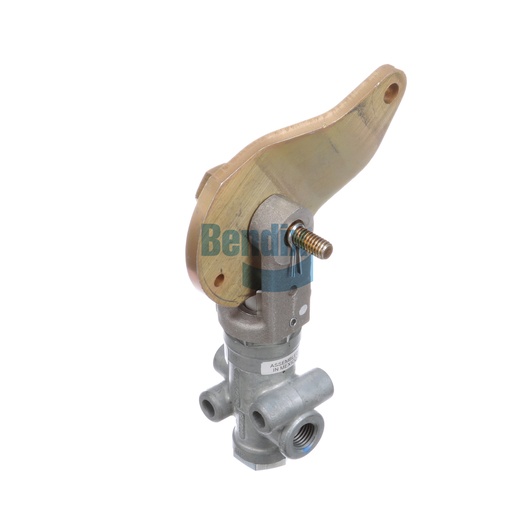

The Control Valve is a vital part of the trailer brake system, designed to provide precise regulation of air pressure to ensure optimal braking performance. Engineered with durability in mind, this valve features a robust construction that can withstand the demands of commercial vehicle applications. With a net weight of 0.5 kg, it is designed for ease of installation without sacrificing strength. The valve operates effectively under a wide range of temperatures, ensuring reliable performance in various conditions. Its accurate control of air pressure enhances safety and responsiveness, making it an essential component for maintaining effective braking systems. For genuine Bendix OEM parts, Source One Parts Center is your best choice for quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Cam Offset
.560 IN
VMRS
013-003-060: Valve - Parking Brake, Remote
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Height
178.3 mm (7.02 in)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120
Length
94.0 mm (3.7 in)
Actuator Material
Aluminum
Actuator Style
Cam
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Finish
Trivalent Chromate
Mounting
Ø .28 IN (2x)
Cam Connection Hole Size
Ø .330 IN
Weight
1.1 lb
