This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

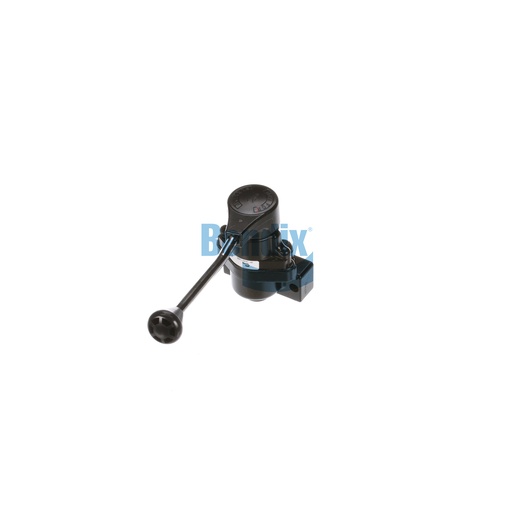

The Bendix Trailer Control Valve is an essential component designed for efficient control of air braking systems in trailers. Weighing 1.0 kg, this valve is engineered for reliable operation, allowing for smooth modulation of brake pressure to enhance safety and performance. Its durable design ensures it can withstand the demanding conditions of commercial use, making it a vital part of your vehicle's braking system. This control valve facilitates precise handling, ensuring that your trailer responds accurately to driver inputs. By choosing Bendix, you are opting for quality and dependability. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring high performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
63° - 68°
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Knob / Handle Text
Handle Shape
Angled
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Positioning
Handle Material
Steel (Chrome Plated)
Body Material
Zinc
Weight
2.29 lb
