107290

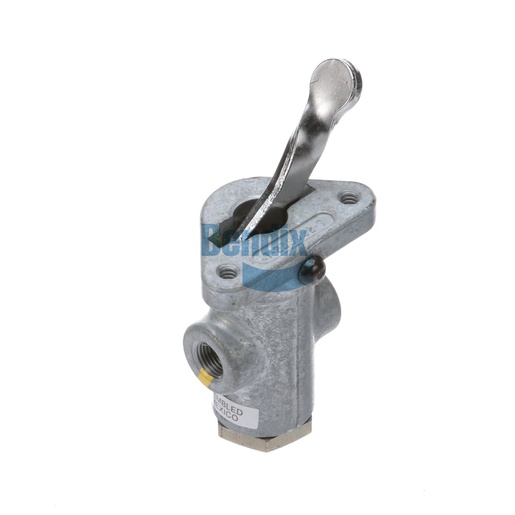

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is designed to optimize the operation of trailer braking systems, ensuring effective air distribution for reliable brake performance. This valve features a robust design to withstand the demands of heavy-duty applications, providing precise control for safer braking. Its easy installation and maintenance make it an essential component for operators looking to enhance their vehicle's performance. Regular checks and timely replacements of control valves are crucial for preventing brake system failures. Source One Parts Center is the best place to acquire genuine Bendix OEM parts, ensuring you receive high-quality components for your fleet.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
54.1 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
93.2 mm (3.67 in)
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Weight
0.44 lb
