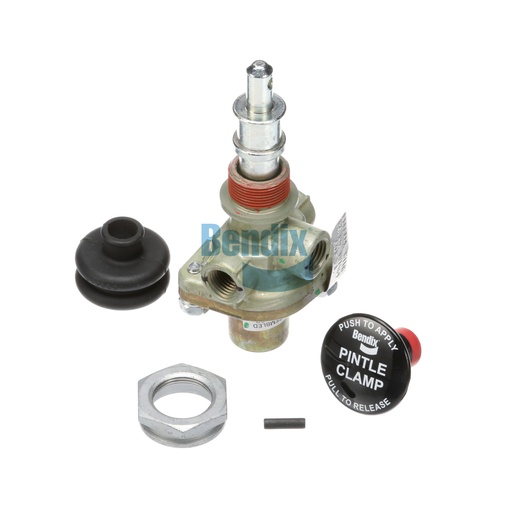

107460N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is crucial for the operation of trailer brake systems, ensuring effective control and safety for commercial vehicles. This valve features a robust construction and lightweight design, weighing only 0.4 kg, making it ideal for heavy-duty applications. Its reliable performance ensures that air pressure is managed effectively, allowing for quick and precise brake application. The valve is easy to install and maintain, contributing to the overall efficiency of your vehicle's braking system. For those in search of genuine Bendix parts, Source One Parts Center stands out as the premier source for authentic OEM components and exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
131.8 mm (5.19 in)
Plunger / Button Height
2.74 IN
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Button Text
Push to Apply | Pintle Clamp | Pull to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.84 lb
