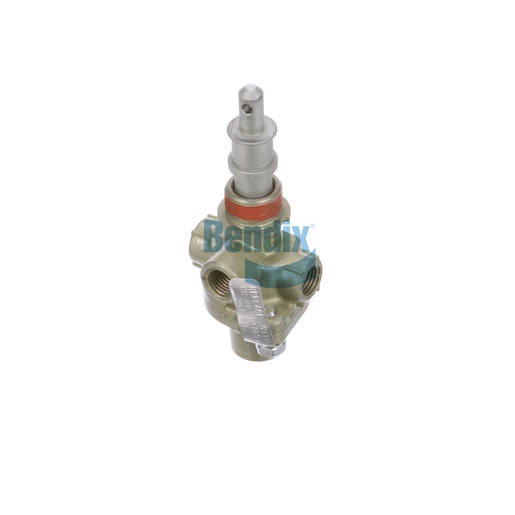

107461N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a critical component in your vehicle’s braking system, ensuring precise control of air pressure for optimal brake function. Designed for durability and reliability, this valve is engineered to withstand the harsh conditions of commercial use, providing consistent performance when it matters most. Its advanced design allows for quick and easy installation, making it an ideal choice for fleet maintenance and repair. The control valve plays a key role in managing the air supply to the brake chambers, enhancing the overall safety and responsiveness of your braking system. When searching for genuine Bendix OEM parts, Source One Parts Center is your best source, providing quality products and exceptional service tailored to your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
121.7 mm (4.79 in)
Plunger / Button Height
2.34 IN
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.65 lb
