$134.95
$161.94
FINAL SALE. No returns or exchanges.

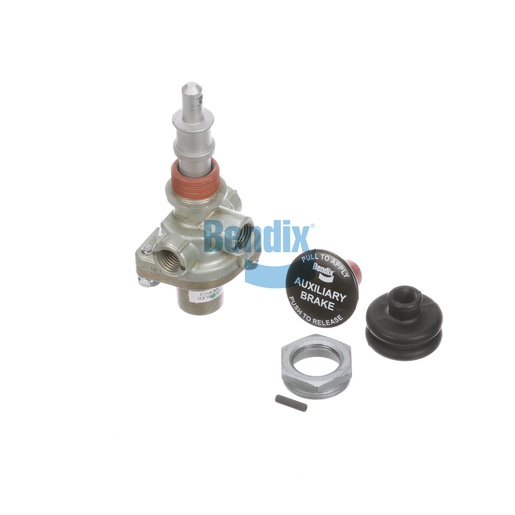

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Ensure reliable braking performance with the Bendix control valve, a vital component in your truck's air system. This high-quality valve is engineered to provide precise control and dependable operation, facilitating the smooth application of air brakes and parking brakes when needed. Its robust design features a durable construction that can withstand the rigors of heavy-duty use, ensuring long-lasting performance even in challenging conditions. With a net weight of just over 0.8 pounds, the valve is lightweight yet sturdy, making it easy to install without compromising on strength. Whether you're transporting goods or navigating rough terrain, this control valve delivers consistent functionality to enhance the safety of your vehicle. For an exceptional selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
131.8 mm (5.19 in)
Plunger / Button Height
2.74 IN
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Button Text
Pull to Apply | Auxiliary Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
