DESCRIPTION

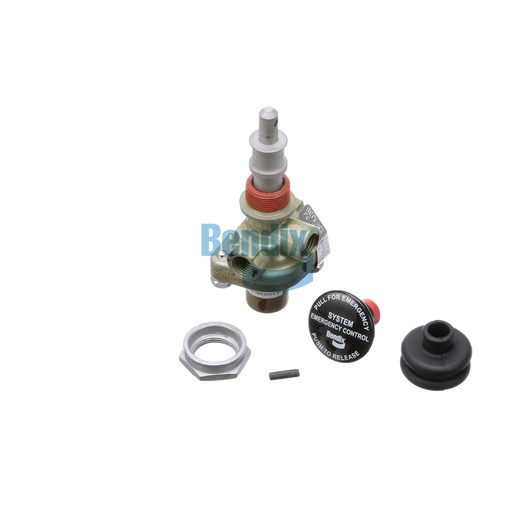

The Control Valve from Bendix is designed for use in trailer braking systems, ensuring precise control of air pressure and flow for optimal braking performance. Weighing 0.4 kg, this valve features a robust design that can withstand the demands of heavy-duty applications, contributing to vehicle safety and reliability. Its multiple ports allow for flexible installation options, making it a versatile component for fleet maintenance. This control valve is essential for maintaining proper air pressure levels, which is crucial for effective braking. For those seeking genuine Bendix OEM parts, Source One Parts Center is the best option, ensuring you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
131.8 mm (5.19 in)
Plunger / Button Height
2.74 IN
Automatic Release Pressure
20 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Button Text
Pull for Emergency | System Emergency Control | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
