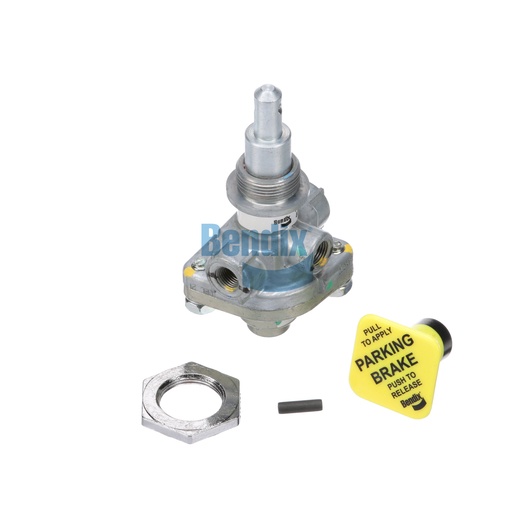

108073N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a critical component in the air brake system of commercial vehicles, facilitating the efficient distribution of air to the braking mechanism. This valve is engineered for performance, featuring a durable design that can withstand the rigors of heavy-duty applications. It operates effectively in a wide temperature range, ensuring reliable functionality in various environmental conditions. The control valve's precise engineering allows for rapid response times, which are essential for maintaining optimal braking performance and vehicle safety. For service technicians and fleet managers seeking to enhance their braking systems, Source One Parts Center offers the best selection of genuine Bendix OEM parts, ensuring reliability and peace of mind.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
115.3 mm (4.54 in)
Plunger / Button Height
2.09 IN
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.71 lb
