$184.95
$221.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

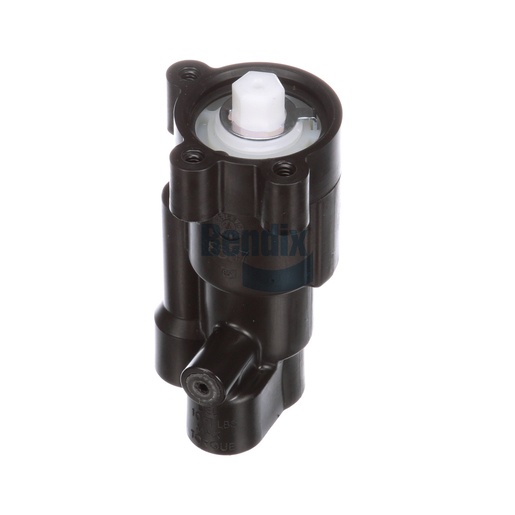

This trailer control valve from Bendix is designed to enhance the braking performance of your trailer, providing critical control over air flow and pressure. Engineered for reliability, this valve ensures smooth operation and responsiveness during braking, which is vital for maintaining the safety of your vehicle and load. Its durable construction withstands the rigors of heavy-duty applications, making it a dependable choice for any fleet. With user-friendly features, the valve allows for straightforward installation and maintenance, ensuring your trailer's braking system operates at peak efficiency. For top-notch Bendix OEM parts, rely on Source One Parts Center, where you can expect quality and exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Maximum Operating Temperature
200 °F (93 °C)
Graduating Pressure Range
5 - 80 PSI
Total Handle Travel
50°
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Self-Return (without Detent)
Weight
0.46 lb
