108545

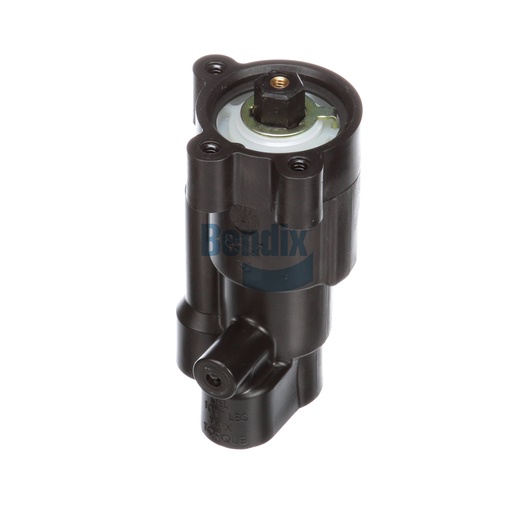

Trailer Control Valve
Bendix
DISCONTINUED
0 are currently available
Ships within 1 business day
$259.95
$311.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your trailer's braking efficiency with the Bendix Trailer Control Valve, a vital component that ensures your trailer brakes respond accurately to driver input. This valve is designed to provide precise control over air delivery, optimizing your braking performance while maintaining safety. Built with robust materials, it is engineered to resist wear and tear, ensuring longevity even in the toughest operating conditions. Whether you are managing heavy loads or navigating challenging terrains, this control valve will help ensure that your trailer braking system operates flawlessly. Source One Parts Center is the best destination for acquiring genuine Bendix OEM parts, ensuring your vehicle is equipped with reliable components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (3x)
Length
122.0 mm (4.8 in)
Maximum Operating Temperature
200 °F (93 °C)
Width
204.0 mm (8.03 in)
Graduating Pressure Range
5 - 80 PSI
Total Cam Follower Travel
55° CW
Height
76.0 mm (2.99 in)
Final Delivery Pressure
80 +10/-5 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Body Material
Plastic
Product Type
Self-Return (without Detent)
Weight
0.46 lb
