108598

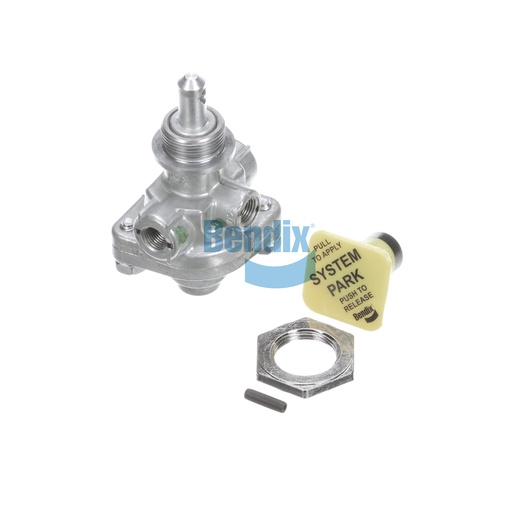

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve from Bendix is an essential component designed for trailer braking systems, specifically for inversion applications. With a compact size and lightweight design at just 0.3 kg, this valve is engineered for durability and reliable operation under demanding conditions. It regulates air pressure effectively, ensuring optimal performance of the braking system by allowing for precise control when applying and releasing the brakes. The Control Valve is manufactured to meet stringent quality standards, providing assurance of its reliability and longevity. Its design facilitates easy installation and maintenance, making it a practical choice for fleet operators. By investing in this Control Valve, you enhance the safety and responsiveness of your trailer braking system. For those seeking genuine Bendix OEM parts, Source One Parts Center is your best source, delivering quality components that keep your commercial vehicles performing at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Shape
Diamond
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
