108620N

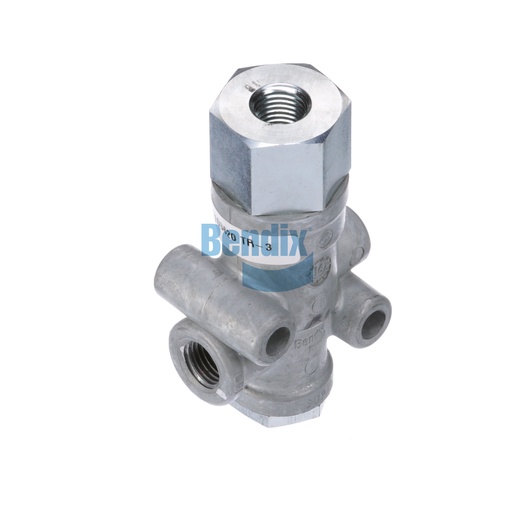

Inversion Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Inversion Valve is a key component in your vehicle's air brake system, designed to effectively manage airflow and pressure for optimal brake performance. This valve operates under a wide range of temperatures, from -40°F to 200°F, making it suitable for various environmental conditions. With a compact design and precise port configurations, including a delivery port of 1/4-18 NPT, this inversion valve ensures quick and reliable response during braking. It features durable construction that withstands the rigors of heavy-duty use, contributing to your vehicle's overall safety and performance. Additionally, its easy installation process means less downtime for your vehicle, allowing you to get back on the road quickly. Source One Parts Center is the go-to destination for high-quality Bendix OEM parts, ensuring that your commercial vehicle runs smoothly and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-363: Inversion Valve - Air Brake
Delivery Port 1
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port 1
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Inlet Opening Descending Pressure (Common CON / SUP)
25 PSI
Width
35.1 mm (1.38 in)
Exhaust Opening Ascending Pressure (Common CON / SUP)
40 PSI
Length
49.0 mm (1.93 in)
Inlet Opening Pressure (Constant SUP / Variable CON)
8 PSI
Harmonized System (HS) Code
848120
Height
90.2 mm (3.55 in)
Country of Origin
Mexico
Mounting
Ø .280 IN (2x)
Weight
0.82 lb
