108757

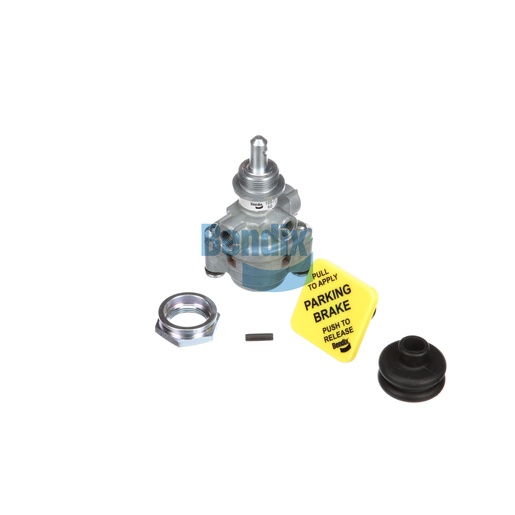

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital part of the trailer braking system, ensuring smooth and efficient operation of air brakes. With a net weight of 0.4 kg, this valve is designed for easy installation and reliable performance, contributing to the safety and efficiency of your commercial vehicles. Its robust construction allows for consistent operation under varying conditions, ensuring that the braking system responds promptly to driver inputs. This control valve is essential for maintaining optimal braking performance, particularly in heavy-duty applications. For high-quality and reliable Bendix OEM parts, Source One Parts Center is your trusted partner, offering the best selection for your fleet's needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Pilot Trip Pressure
18 PSI
Maximum Operating Temperature
200 °F (93 °C)
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Automatic Release Pressure
60 PSI
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
99.1 mm (3.9 in)
Button Shape
Diamond
Country of Origin
Mexico
Dial Included
No
Button Text
Pull to Apply | Parking Brake | Push to Release
Exhaust Port
Vent
Button Color
Yellow (Black Band)
Button(s) Included
Yes
Mounting Nut Included
Yes
Rubber Boot Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.9 lb
