109412

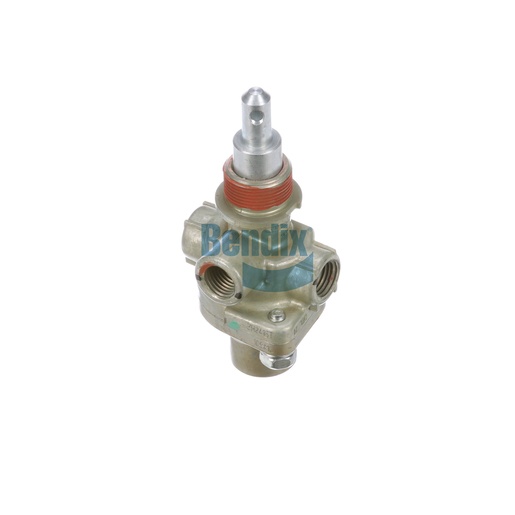

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a crucial component for maintaining the integrity of air brake systems in commercial vehicles. This inversion valve features a robust design that ensures precise control of air flow, allowing for optimal braking performance. Its reliable operation under varying pressure conditions enhances safety and responsiveness, making it an essential part of any trucking fleet. With a net weight of 0.3 kg (0.73 lb), this valve is compact yet powerful, fitting seamlessly into your vehicle's brake system. The valve is engineered to withstand the high demands of commercial use, ensuring long-term durability and efficiency. Source One Parts Center is the ideal destination for genuine Bendix OEM parts, ensuring that your vehicles operate at their best with trusted components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.67 IN
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Length
104.6 mm (4.12 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Cautionary Note(s)
Don't install fittings in Exhaust Port for Parking Applications
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.73 lb
