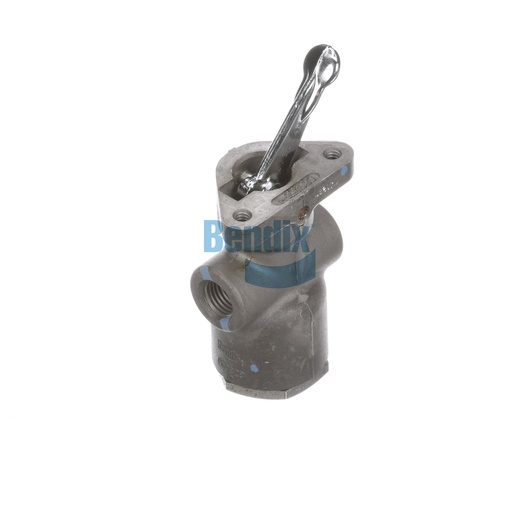

225892R
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a sophisticated component designed to manage the air supply in trailer braking systems, ensuring precise and reliable operation. This valve utilizes advanced technology, including a flipper actuator and multiple ports for efficient air distribution. Weighing a mere 0.2 kg, it features a compact design that facilitates easy installation in tight spaces. The Control Valve is engineered to function effectively under varying environmental conditions, maintaining performance and safety. For those who prioritize quality and authenticity, Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring that your braking systems are equipped with the best components available.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Product Type
2-Position Valve (Vacuum)
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Lever Position (Initial)
Away from Exhaust
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.42 lb
