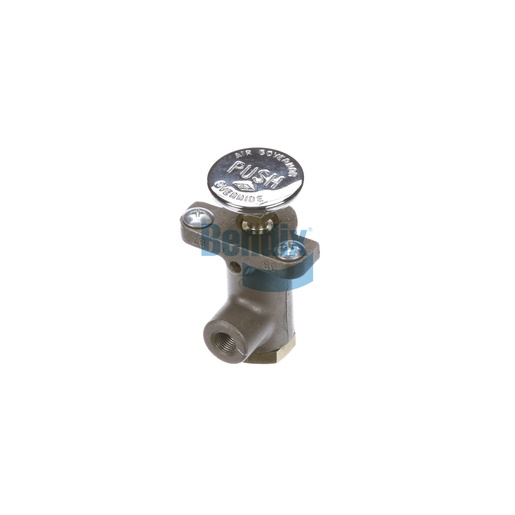

227248N
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital component for managing air pressure in trailer braking systems, ensuring responsive and reliable braking performance. This durable valve is designed for heavy-duty use, featuring precise engineering that allows for quick response times. With a weight of 0.2 kg, it integrates seamlessly into your vehicle's braking system, enhancing overall control and safety. For those in need of high-quality commercial truck parts, Source One Parts Center is your best option for genuine Bendix OEM components that guarantee performance and reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Plunger / Button Height
.875 IN
VMRS
013-010-014: Hand Control Valve - Air
Plunger Diameter
1/4-20 UNC-3A
Delivery Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
39.6 mm (1.56 in)
Height
50.0 mm (1.97 in)
Length
79.4 mm (3.13 in)
Harmonized System (HS) Code
848120
Button Text
Air Governor | Push | Override
Button Color
Chrome
Dial Included
No
Rubber Boot Included
No
Button Shape
Round
Country of Origin
United States
Exhaust Port
Vent (Ø .125 IN)
Button(s) Included
Yes
Mounting Nut Included
Yes
Weight
0.33 lb
