$81.95
$98.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

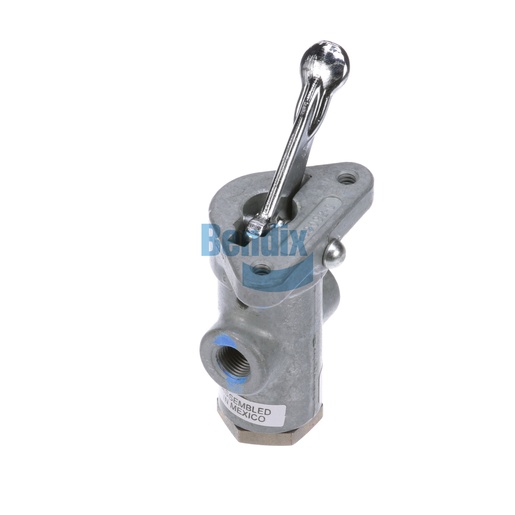

The Control Valve from Bendix is a top-of-the-line solution for managing air flow in trailer brake systems. This 2-position valve is designed for efficiency, featuring a chrome-plated actuator and a durable zinc body that can withstand harsh environmental conditions. With a maximum operating temperature of 200 °F and a minimum of -40 °F, this valve operates effectively in a wide range of temperatures, ensuring consistent performance. Its compact design allows for easy installation and maintenance, making it a favorite among fleet managers. The dual delivery ports enhance versatility, making it suitable for various applications. When you choose this genuine Bendix OEM Control Valve, you ensure the operational integrity of your braking system. Source One Parts Center is the ideal place to purchase authentic Bendix parts, guaranteeing quality and reliability for your commercial vehicles.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
34.0 mm (1.34 in)
Length
54.0 mm (2.13 in)
Total Travel
75°
Harmonized System (HS) Code
848120
Height
93.0 mm (3.66 in)
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.46 lb
