228729R
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

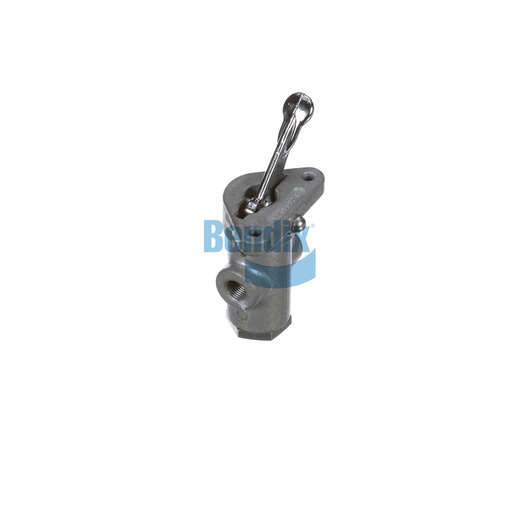

The Control Valve from Bendix is an essential component of the trailer braking system, designed for reliable performance and efficiency. This valve, weighing only 0.2 kg, is engineered to provide precise control of air flow and pressure, ensuring optimal braking response and safety in commercial vehicles. With its durable construction, it is designed to withstand the rigors of heavy-duty applications, making it a crucial part of any braking system. Its compatibility with various Bendix trailer valves makes it a versatile choice for fleet maintenance. Source One Parts Center is your best source for genuine Bendix OEM parts, offering trusted components to keep your vehicle operating at its best.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.46 lb
