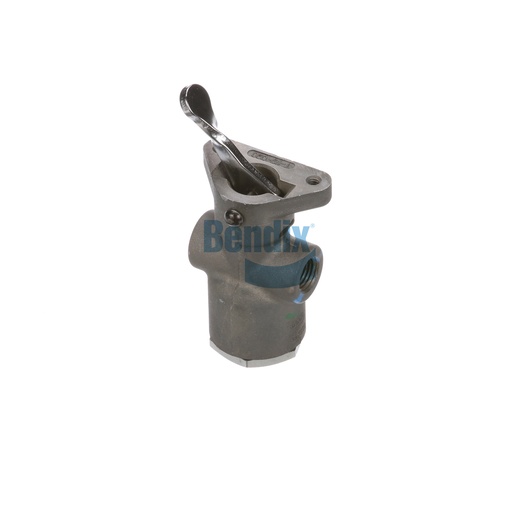

228762R
Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is essential for managing the air supply in trailer braking systems, ensuring that brakes engage smoothly and efficiently. With a lightweight design of just 0.2 kg (0.44 lb), this valve is engineered to handle varying air pressures, optimizing brake performance under different load conditions. Its robust construction guarantees longevity and reliability, making it a key component in maintaining a safe and functional braking system. Choose this Control Valve for improved responsiveness and safety on the road. For superior quality and genuine Bendix parts, Source One Parts Center is your best choice.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Product Type
2-Position Valve (Vacuum)
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Lever Position (Initial)
Away from Exhaust
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Actuator Material
Steel
Exhaust Port
Vent
Weight
0.44 lb
