229216N

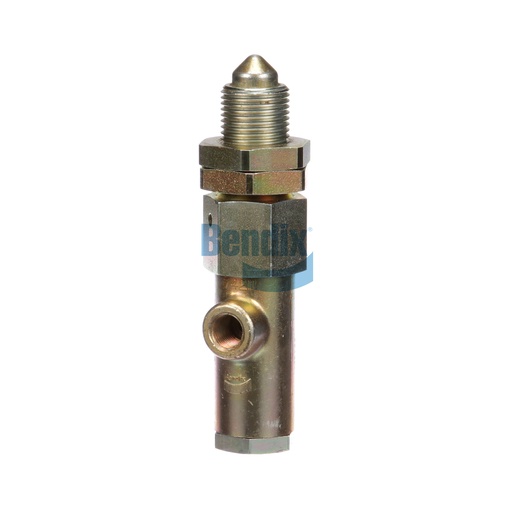

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is an essential component in trailer braking systems, designed to ensure precise control over air supply to the brakes. This valve is engineered for durability and reliability, allowing for effective performance in demanding commercial applications. Its compact design facilitates easy installation, making it suitable for various vehicles. The valve's robust construction ensures that it can handle the pressures of heavy-duty use, providing peace of mind to fleet operators and drivers alike. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best destination, offering quality and service you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Plunger / Button Height
1.50 IN
Delivery Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
108.0 mm (4.25 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/4-16 UNF-3A
Height
33.0 mm (1.3 in)
Width
33.0 mm (1.3 in)
Harmonized System (HS) Code
848120
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Country of Origin
United States
Exhaust Port
Vent (Ø .125 IN)
Mounting Nut Included
Yes
Plunger Diameter
Ø .496 IN
Weight
0.66 lb
