229614N

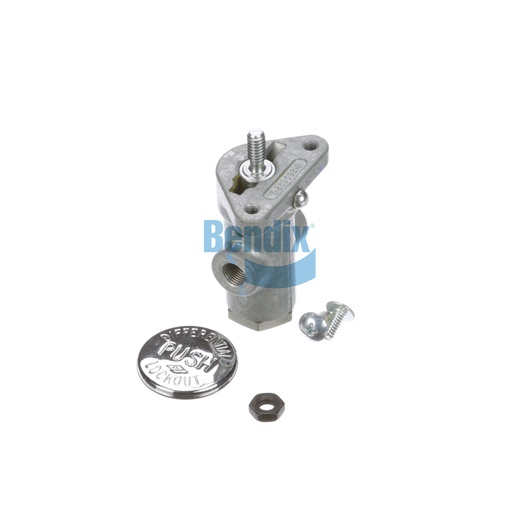

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix control valve is a critical component in ensuring efficient operation of trailer braking systems. Designed for durability and reliability, this valve manages air pressure with precision, allowing for smooth braking performance. Weighing only 0.31 lbs, it features a compact design that facilitates easy installation while maintaining robust functionality. The valve's innovative design includes multiple ports for versatile applications, making it suitable for various trailer setups. By investing in high-quality control valves, you enhance the overall safety and performance of your vehicle's braking system. Source One Parts Center stands out as the premier destination for authentic Bendix OEM parts, ensuring you receive reliable components for your commercial vehicle.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.094 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Button Text
Differential Lockout Push
Country of Origin
Mexico
Actuator Style
Push Button
Mechanism Type
Self-Return
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.31 lb
