DESCRIPTION

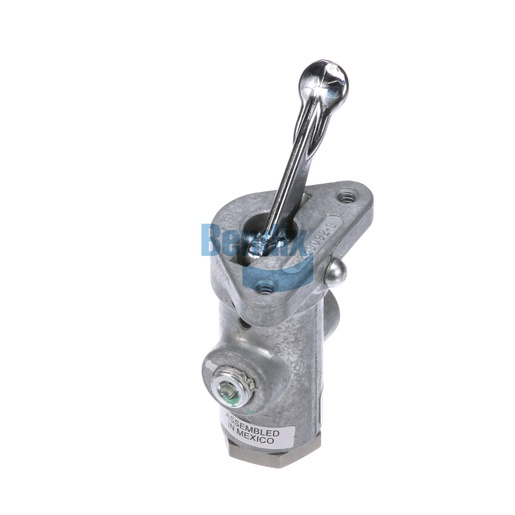

The Control Valve is essential for managing the air supply in trailer braking systems, ensuring that the brakes apply and release as needed for safe operation. This valve is designed for efficient airflow and precise control, contributing to smoother and more responsive braking performance. Built with durability in mind, it can withstand challenging environmental conditions, making it suitable for heavy-duty applications. The valve features an easy-to-install design, helping to reduce maintenance time and improve fleet efficiency. With its reliable functionality, the Control Valve plays a vital role in enhancing vehicle safety and performance. For top-quality OEM parts, Source One Parts Center stands out as the best option, offering genuine Bendix parts that you can trust for your commercial vehicle needs.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT (Plugged)
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.49 lb
