229623N

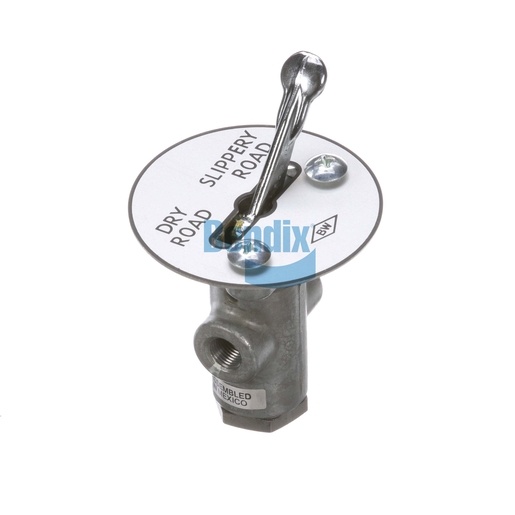

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is designed to optimize the operation of trailer valves, specifically the inversion valves in air brake systems. This valve is engineered for durability and reliability, ensuring consistent performance in various operating conditions. With a compact design that weighs only 0.51 lbs, it offers easy installation without compromising on efficiency. The valve's advanced features allow for smooth air flow control, enhancing the responsiveness and safety of your braking system. When it comes to maintaining your truck's braking performance, this control valve is an indispensable component. For authentic Bendix OEM parts that guarantee quality, Source One Parts Center is the best place to shop.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Dial / Plate Text
Dry Road-Slippery Road
Actuator Style
Flipper
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.51 lb
