229628N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

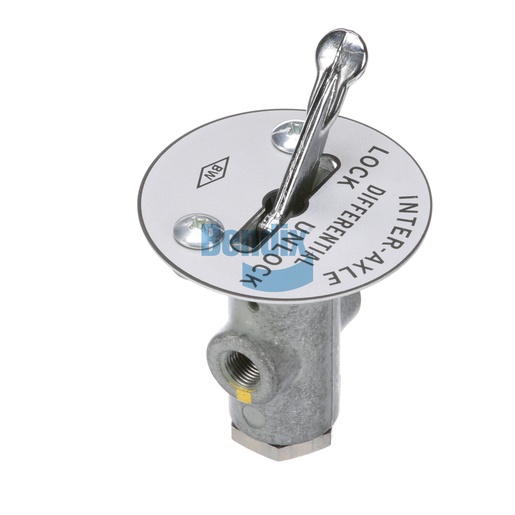

The Bendix Control Valve is a crucial component designed for optimizing the performance and safety of your commercial vehicle's braking system. With a robust construction featuring a chrome-plated actuator and zinc actuator material, this valve ensures durability and reliability under heavy-duty conditions. The control valve operates with a total travel of 75° and features a flipper actuator style that allows for precise positioning. It is equipped with multiple delivery and supply ports, including 1/8-27 NPT connections, making it adaptable for various trailer applications. This valve is engineered to withstand extreme temperatures ranging from -40°F to 200°F, ensuring consistent operation in diverse climates. Whether you're managing a fleet or a single vehicle, the Bendix Control Valve enhances braking efficiency and responsiveness, contributing to overall vehicle safety. For genuine Bendix OEM parts, including this control valve, Source One Parts Center is your top choice, offering quality products that meet the highest industry standards.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Actuator Style
Flipper
Dial / Plate Text
Inter-Axle Differential | Lock-Unlock
Country of Origin
Mexico
Mechanism Type
Positioning
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.53 lb
