229649

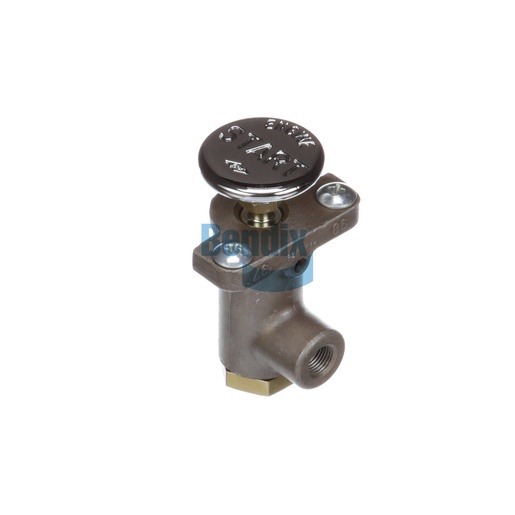

Control Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a sophisticated component that plays a crucial role in the operation of trailer air brake systems. Designed for precision and reliability, this inversion valve regulates the flow of air, ensuring that braking power is efficiently distributed to the trailer's braking system. Its compact design allows for easy installation, while its robust construction ensures it can withstand the demanding conditions of commercial transportation. This control valve enhances the safety and effectiveness of braking operations, contributing to better overall vehicle control and performance. By choosing Source One Parts Center for your Bendix OEM parts, you can rest assured that you are investing in high-quality components that meet rigorous standards for performance and reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Plunger / Button Height
.875 IN
VMRS
013-010-014: Hand Control Valve - Air
Plunger Diameter
1/4-20 UNC-3A
Delivery Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
39.6 mm (1.56 in)
Height
50.0 mm (1.97 in)
Length
79.4 mm (3.13 in)
Harmonized System (HS) Code
848120
Button Color
Chrome
Button Text
Engine Start
Dial Included
No
Rubber Boot Included
No
Button Shape
Round
Country of Origin
United States
Exhaust Port
Vent (Ø .125 IN)
Button(s) Included
Yes
Mounting Nut Included
Yes
Weight
0.37 lb
