$244.95
$293.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

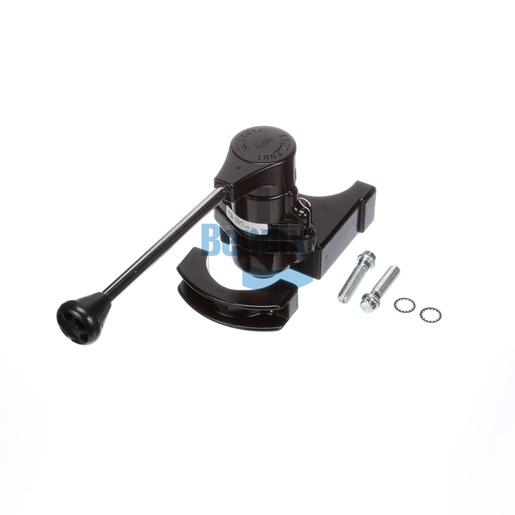

The Bendix Trailer Control Valve is a vital component designed to facilitate the smooth operation of your trailer's air brake system. Built for reliability, this valve is engineered to ensure precise control and responsiveness when activating the trailer brakes. With a robust zinc body and a straight handle design, it is easy to operate and integrates seamlessly into your existing system. The valve supports a graduated pressure range of 5 to 80 PSI, allowing for tailored braking performance depending on load conditions. Its compact size and lightweight design (3.25 lbs) make it easy to install, while the mounting clamp included ensures a secure fit. This valve is ideal for commercial operators seeking to enhance their vehicle's braking capabilities and maintain safety on the road. For those looking for original Bendix parts, Source One Parts Center is the best choice, guaranteeing genuine components that provide optimal performance and durability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Height
114.0 mm (4.49 in)
Length
114.0 mm (4.49 in)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 80 PSI
Width
79.0 mm (3.11 in)
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Final Delivery Pressure
Reservoir
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
3.25 lb
