DESCRIPTION

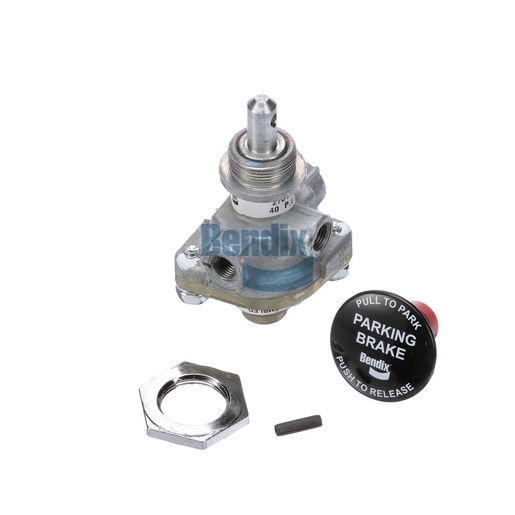

The Bendix Control Valve is a crucial component in your air brake system, designed to offer precise control over air pressure and braking performance. This valve features a robust construction that allows it to operate efficiently in extreme conditions, with a temperature range of -40°F to 200°F. Its design includes a mounting system that simplifies installation, ensuring that you can quickly integrate it into your existing system. The control valve is equipped with features that facilitate quick response times, enhancing driver control and safety. For genuine Bendix OEM parts, Source One Parts Center is the premier destination, offering quality products that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.7 lb
