$459.95
$551.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

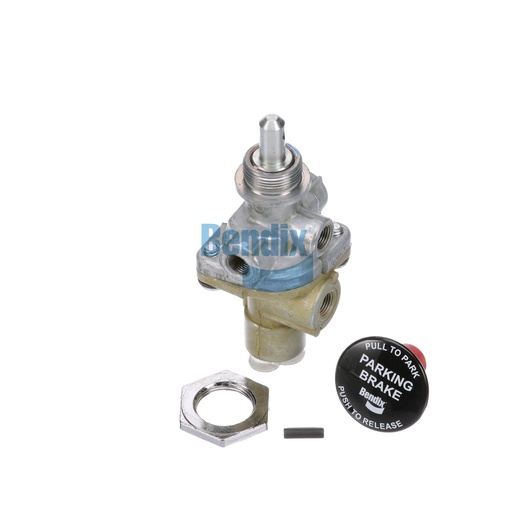

The Bendix control valve is a critical component for managing air supply and pressure in your vehicle's braking system. This inversion valve allows for precise control, ensuring that your brakes respond effectively and safely under various driving conditions. Designed for easy installation, it features multiple ports for versatile configurations, making it compatible with a wide range of commercial vehicles. The high-quality construction and reliable operation of this valve help to prevent brake system failures and enhance overall safety on the road. Investing in this control valve means investing in the long-term performance of your braking system. Source One Parts Center is your reliable source for genuine Bendix OEM parts, assuring you of the best quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Park | Parking Brake | Push to Release
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
