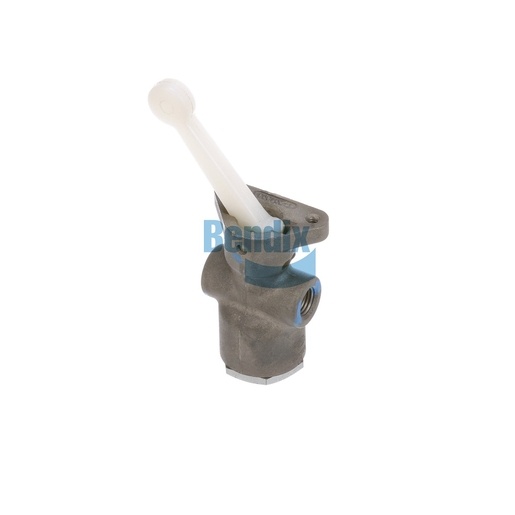

275434N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the performance of your air brake system with the Bendix Control Valve, specifically designed for trailer and inversion applications. This reliable valve features a flipper actuator that allows for precise control of air flow, ensuring optimal braking response under various conditions. With a maximum operating temperature of 200°F and a minimum of -40°F, it is built to perform efficiently in extreme environments. Its compact design and standard mounting options simplify installation, making it an ideal choice for both new builds and replacements in existing systems. The valve's construction from high-quality materials ensures durability and longevity, keeping your braking system functional when you need it most. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, your trusted partner for all your commercial vehicle needs.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Lever Position (Initial)
Away from Exhaust
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Finish
Natural
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.51 lb
