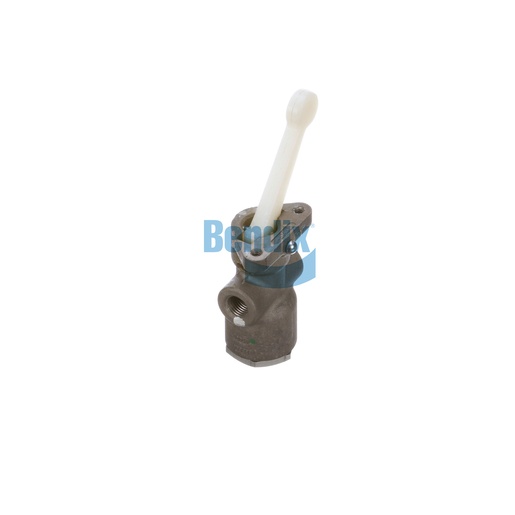

275434R
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is engineered for precision control in trailer brake systems, providing reliable operation with a maximum temperature rating of 200°F. This 2-position valve features a flipper actuator style, allowing for smooth transitions between brake applications. Its natural finish and durable materials ensure longevity, making it ideal for heavy-duty applications. The valve’s compact design minimizes installation space while maximizing performance, contributing to the overall safety and responsiveness of your braking system. For exceptional quality and performance, trust Source One Parts Center to supply you with genuine Bendix OEM parts, ensuring your commercial vehicle maintains its efficiency and safety standards.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/4-18 NPT
Delivery Port 2
1/4-18 NPT
Supply Port
1/4-18 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Total Travel
75°
Harmonized System (HS) Code
848120
Lever Position (Initial)
Away from Exhaust
Actuator Style
Flipper
Country of Origin
Mexico
Actuator Finish
Natural
Actuator Material
Nylon
Mechanism Type
Positioning
Exhaust Port
Vent
Weight
0.51 lb
