$234.95
$281.94

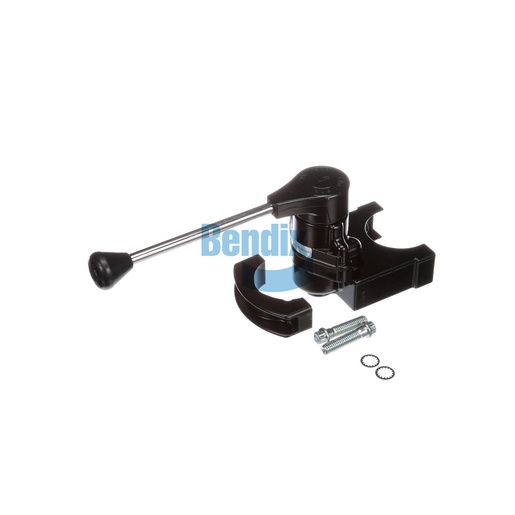

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve is designed to provide precise control over the air brake system in trailers, ensuring smooth operation and enhanced safety. This valve features a durable body that can withstand high pressures and harsh conditions, making it ideal for heavy-duty applications. Its straightforward installation process allows for quick replacement, minimizing downtime. By upgrading to this trailer control valve, operators can achieve improved braking efficiency and responsiveness, vital for safe transport. Source One Parts Center is the best choice for genuine Bendix OEM parts, guaranteeing quality and reliability in every component.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2A Screw (2x)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Total Handle Travel
90°
Knob / Handle Text
Knob / Handle Color
Black
Mounting Location
Column Mount
Country of Origin
Mexico
Reverse Cam
No
Product Type
Positioning
Final Delivery Pressure
Reservoir
Handle Material
Steel (Chrome Plated)
Handle Shape
Straight
Mounting Clamp Included
Yes
Body Material
Zinc
Weight
4.3 lb
