275782N

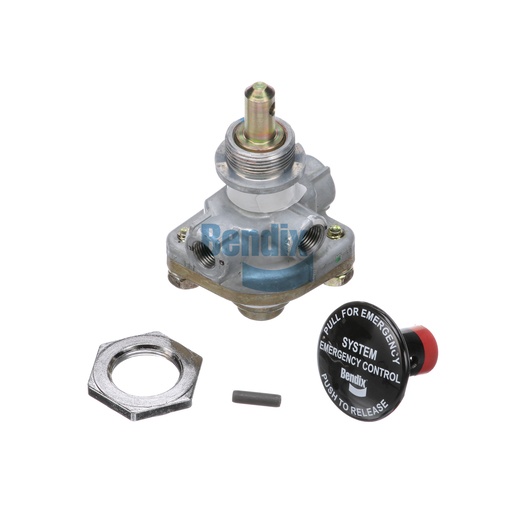

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a highly efficient component designed to optimize the performance of trailer brake systems. This valve features a durable design that ensures reliability under various operating conditions. With a maximum operating temperature of 200°F, it is engineered to withstand the challenges of the road while providing precise control over air pressure. Its compact size allows for easy installation in tight spaces, making it an ideal choice for a range of commercial vehicles. The intuitive button design enhances usability, ensuring that drivers can effectively manage braking with minimal effort. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the leading source for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull for Emergency | System Emergency Control | Push to Release
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.66 lb
