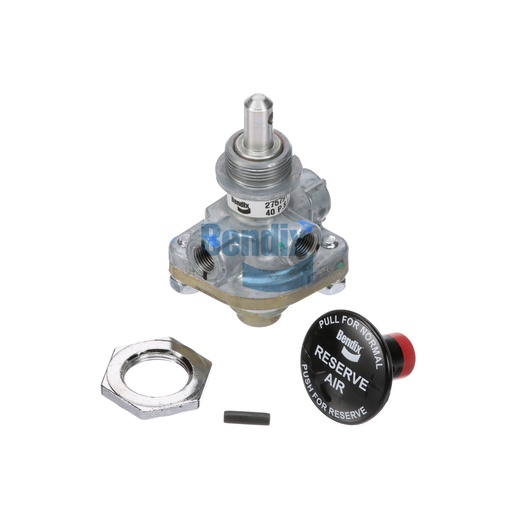

275791N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an integral part of your vehicle's braking system, specifically designed to manage air flow efficiently for optimal brake performance. This valve features a compact design, weighing only 0.3 kg, which makes it easy to install and maintain. Engineered for reliability, it operates effectively across a wide temperature range, ensuring consistent performance even in challenging conditions. The control valve is critical for ensuring that your braking system responds accurately to driver inputs, thus enhancing overall vehicle safety and control. By choosing a genuine Bendix Control Valve, you guarantee that your vehicle benefits from top-tier engineering and quality. Source One Parts Center is your trusted source for authentic Bendix OEM parts, ensuring you receive only the best components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull for Normal | Reserve Air | Push for Reserve
Button Shape
Round
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
