275796N

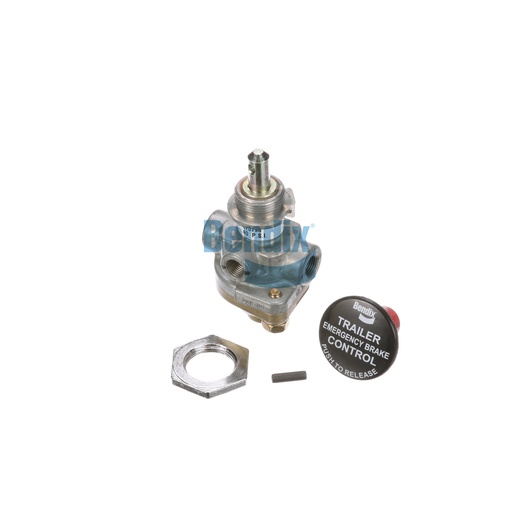

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is an integral component designed for effective management of air pressure in your vehicle’s braking system. This valve is engineered to ensure reliable functionality during braking operations, helping to maintain the safety and efficiency of your commercial vehicle. With a compact design and lightweight of just 0.64 pounds, it is easy to install and replace, making maintenance a breeze. The valve is equipped with features that allow for quick and precise control of air delivery, enhancing the responsiveness of your braking system. Built to withstand demanding conditions, this control valve has a maximum operating temperature of 200°F and a minimum of -40°F. For operators who prioritize safety and performance, this control valve is essential for optimal braking operation. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the top choice for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.59 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
102.6 mm (4.04 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Shape
Round
Button Text
Trailer Emergency Brake Control | Push to Release
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
