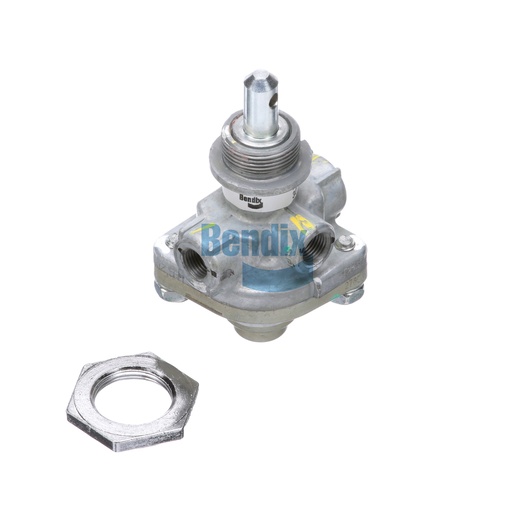

276004N
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Control Valve is a key component in the air brake systems of commercial trucks, designed to manage air flow and pressure effectively. This valve features a robust design that ensures reliable operation, even under demanding conditions. Its ability to control the air delivery and exhaust allows for optimal braking performance, contributing to the overall safety of the vehicle. With an easy installation process, this control valve can seamlessly integrate into your existing systems, minimizing downtime during maintenance. Its durable construction ensures longevity, making it a valuable addition to any fleet. For those seeking dependable and high-quality truck parts, Source One Parts Center is the premier destination for genuine Bendix OEM components, ensuring your vehicle operates efficiently and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
90.7 mm (3.57 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Rubber Boot Included
No
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.64 lb
