276272

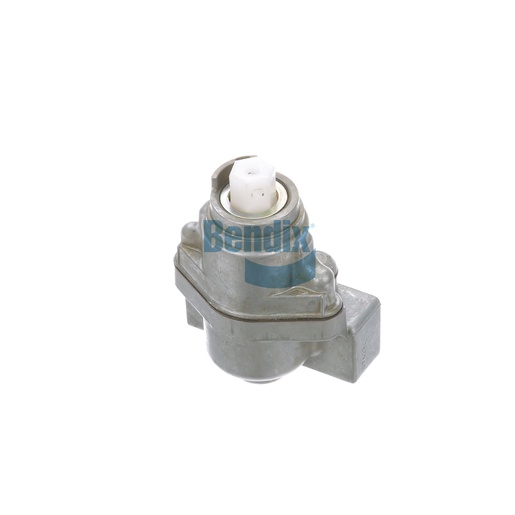

Trailer Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Trailer Control Valve by Bendix is designed to optimize the air supply management in your trailer's braking system, ensuring that braking performance is both consistent and reliable. This valve features a durable design that can withstand the demands of heavy-duty applications, making it an excellent choice for commercial fleets. With its precise air control capabilities, it enhances the safety and responsiveness of your vehicle, allowing for smooth braking and reduced wear on components. The valve's easy installation process helps reduce downtime, enabling operators to quickly upgrade their braking systems. By incorporating this valve into your trailer, you can ensure better control and safety while on the road. Source One Parts Center is the best place to find genuine Bendix OEM parts, guaranteeing quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Final Delivery Pressure
Reservoir
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
1.98 lb
