276454

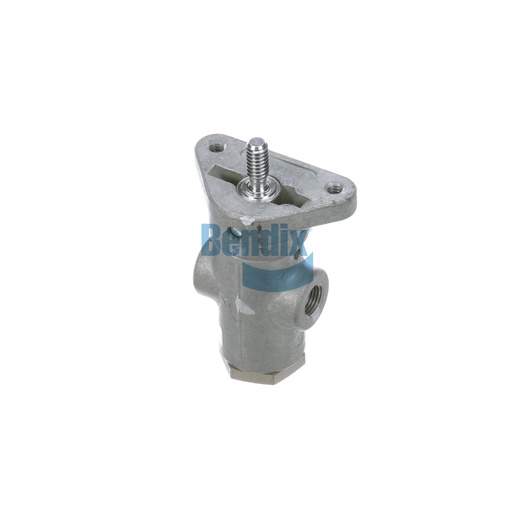

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is a vital component for managing the air supply in trailer braking systems, specifically designed for inversion applications. This valve ensures precise control over air flow, contributing to the efficient operation of your vehicle's braking system. Weighing 0.2 kg (0.51 lb), this lightweight device is easy to install and maintain, making it an ideal choice for fleet operators. Its robust design allows it to endure the harsh conditions of commercial driving while providing dependable performance. By ensuring that air pressure is managed effectively, this control valve plays a crucial role in maintaining braking effectiveness and safety on the road. When looking for genuine Bendix parts, Source One Parts Center is the best destination to secure high-quality OEM components for your vehicle's needs.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.094 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
50.8 mm (2.0 in)
Height
79.2 mm (3.12 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Actuator Style
Plunger (without Push Button)
Mechanism Type
Self-Return
Exhaust Port
Vent
Weight
0.51 lb
