276455

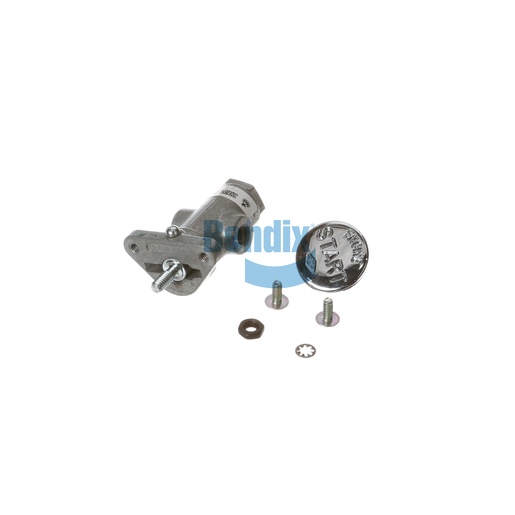

Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve is designed for precise air management in trailer systems, ensuring optimal brake performance and safety. With its self-return mechanism and durable construction, this valve effectively regulates air pressure, enhancing vehicle control and responsiveness. Weighing only 0.3 kg, it is compact and easy to install, minimizing downtime during maintenance. This valve operates efficiently across a wide temperature range, making it suitable for various operating conditions. For those in need of dependable components, Source One Parts Center is your go-to source for genuine Bendix OEM parts.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.094 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Width
33.5 mm (1.32 in)
Length
50.8 mm (2.0 in)
Height
79.2 mm (3.12 in)
Harmonized System (HS) Code
848120
Actuator Finish
Chrome-Plated
Button Text
Engine Start
Country of Origin
Mexico
Actuator Style
Push Button
Mechanism Type
Self-Return
Exhaust Port
Vent
Actuator Material
Zinc
Weight
0.6 lb
