$429.95
$515.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

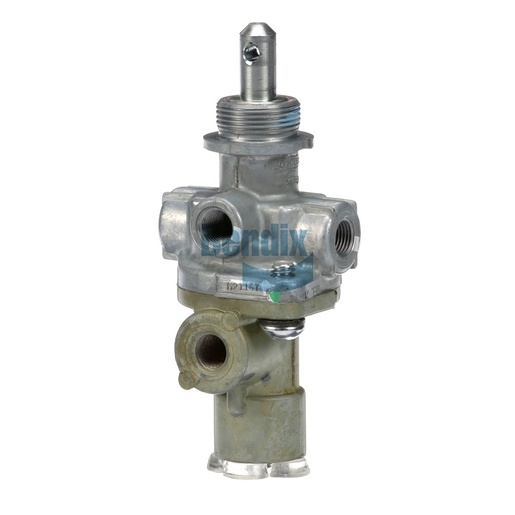

The Control Valve from Bendix is engineered to optimize the functionality of your air brake systems, ensuring precise control and responsiveness during operation. This valve features a robust design capable of withstanding extreme temperatures, ranging from -40°F to 200°F, making it ideal for various commercial applications. With a compact size and a weight of just 0.4 kg, it allows for straightforward installation, ensuring minimal downtime during maintenance. The unique design includes multiple ports for efficient air management, which enhances braking reliability. This valve is perfect for both tractor and trailer applications, providing the versatility needed in modern fleets. For those looking for the best in Bendix OEM parts, Source One Parts Center is the go-to destination, providing authentic products that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Plunger Diameter
Ø .374 IN
Weight
0.84 lb
