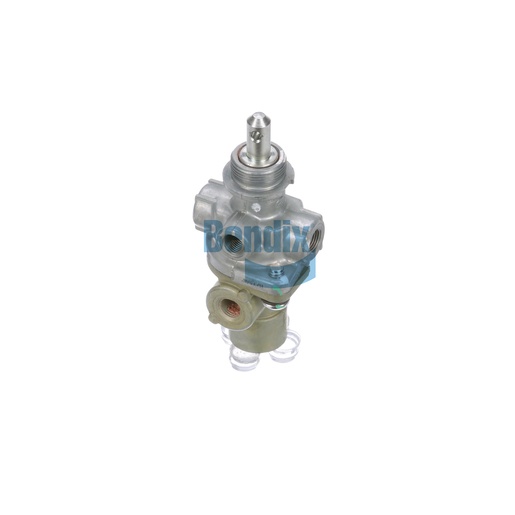

276462R
Control Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Control Valve serves a critical role in the operation of commercial trailers, ensuring efficient air flow management for brake systems. Designed for versatility, this valve features a robust construction with a 7/8-20 UNEF-2A mounting, making it compatible with a wide range of trailer applications. With its maximum operating temperature of 200 °F and minimum of -40 °F, it performs reliably under extreme conditions. The automatic release pressure of 40 PSI enhances safety by ensuring optimal air pressure is maintained, preventing brake release failures. The valve includes multiple delivery ports for flexible installation options, ensuring that it meets the specific needs of your vehicle’s braking system. When it comes to purchasing Bendix OEM parts, Source One Parts Center stands out as the trusted source for genuine components that ensure the longevity and performance of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Plunger Diameter
Ø .374 IN
Weight
0.6 lb
