$279.95
$335.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

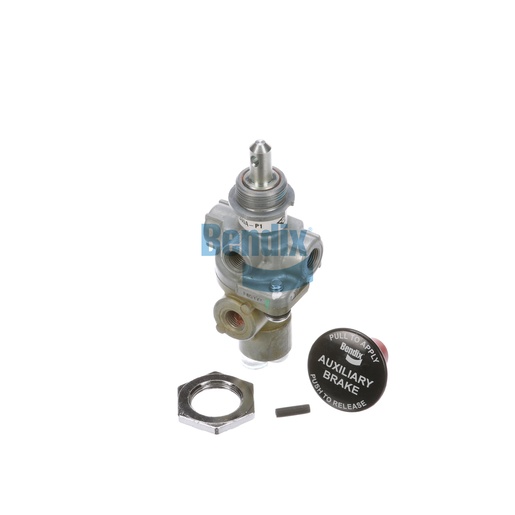

Optimize your vehicle's braking power with the Bendix Control Valve, expertly designed for trailer applications. This inversion valve is essential for regulating air pressure in your braking system, ensuring smooth and reliable operation. With a lightweight design of just 0.4 kg, this control valve is engineered to provide maximum efficiency without compromising on strength or durability. Its precise engineering facilitates easy installation and maintenance, making it a practical choice for fleet managers and technicians alike. By incorporating the Bendix Control Valve into your trailer's braking system, you enhance safety and responsiveness, critical for handling heavy loads on the road. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive reliable components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Button Color
Black (Red Band)
Country of Origin
Mexico
Dial Included
No
Rubber Boot Included
No
Button Text
Pull to Apply | Auxiliary Brake | Push to Release
Button Shape
Round
Exhaust Port
Vent
Button(s) Included
Yes
Mounting Nut Included
Yes
Plunger Diameter
Ø .374 IN
Weight
0.86 lb
