$164.95
$197.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

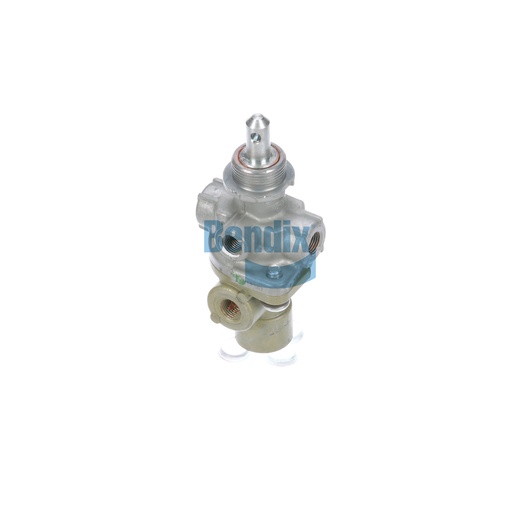

The Bendix Control Valve is an essential component for maintaining effective braking in trailer systems, ensuring precise control of air pressure for optimal performance. Designed for reliability, this valve features a lightweight construction of 0.79 lbs, allowing for easy installation in various vehicle configurations. The control valve’s durable design ensures it can withstand the rigors of heavy-duty use, making it ideal for commercial applications. It efficiently manages the flow of air to the braking system, allowing for quick response times and improved safety during operation. Keeping this control valve in top condition is vital for the effective functioning of your vehicle's braking system. Source One Parts Center excels in providing genuine Bendix parts, making it the best choice for securing high-quality components that meet OEM standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.12 IN
Control (Pilot / AUX) Port
1/8-27 NPT
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Length
111.0 mm (4.37 in)
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
40 PSI
Height
47.0 mm (1.85 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Exhaust Port
Vent
Plunger Diameter
Ø .374 IN
Weight
0.79 lb
