$51.95
$62.34

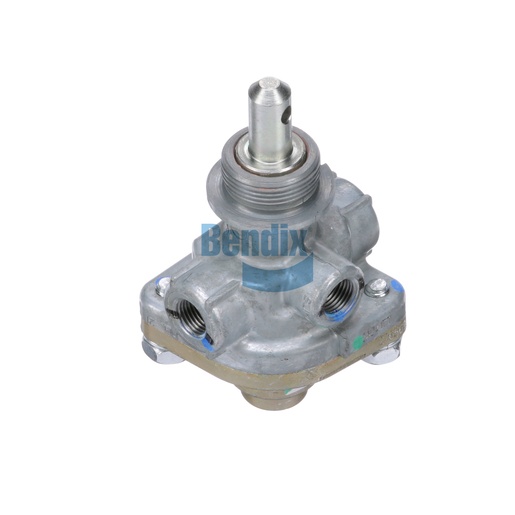

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The control valve is a key component in the pneumatic systems of commercial vehicles, providing critical air management for braking and other systems. Designed for durability and reliability, this valve ensures that your truck's air supply is regulated effectively, facilitating smooth operation under various conditions. Its flipper actuator style allows for precise control, making it an essential part of your vehicle's braking system. With a robust construction, it withstands the challenges of heavy-duty use, ensuring drivers can trust their brake performance. For those looking for authentic Bendix parts, Source One Parts Center is your best source for genuine OEM solutions.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Plunger / Button Height
1.16 IN
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Exhaust Port
1/8-27 NPT
Supply Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Automatic Release Pressure
30 PSI
Height
45.7 mm (1.8 in)
Width
50.8 mm (2.0 in)
Mounting
7/8-20 UNEF-2A
Harmonized System (HS) Code
848120
Length
91.7 mm (3.61 in)
Country of Origin
Mexico
Button(s) Included
No
Dial Included
No
Mounting Nut Included
No
Rubber Boot Included
No
Plunger Diameter
Ø .374 IN
Weight
0.6 lb
