DESCRIPTION

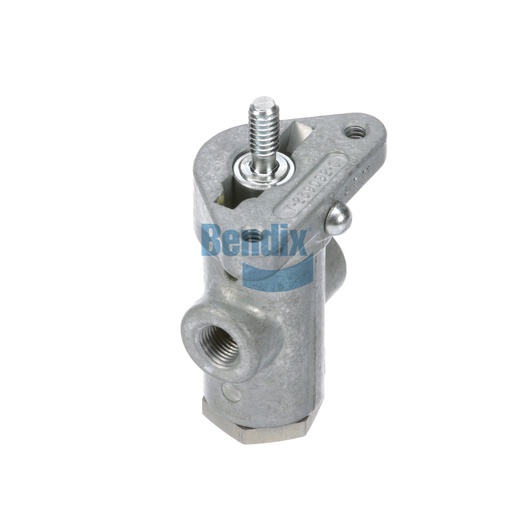

The Bendix Control Valve is essential for managing the air supply in trailer braking systems, providing reliable operation for commercial vehicles. This valve features a user-friendly design with a pull-to-apply and push-to-release mechanism, enhancing safety and control for the driver. Crafted from durable materials, it is built to endure the challenges of heavy-duty applications, ensuring longevity and performance. The valve operates effectively across a wide temperature range, making it suitable for various environments. With straightforward installation and maintenance requirements, it is a practical choice for fleet operators. For those seeking authentic components for their vehicles, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and reliability.
SPECIFICATIONS
Mounting
#10-24 UNC-2B (2x)
Minimum Operating Temperature
-40 °F (-40 °C)
Total Travel
.094 IN
VMRS
013-010-477: Flipper Valve
Delivery Port 1
1/8-27 NPT
Delivery Port 2
1/8-27 NPT
Supply Port
1/8-27 NPT
Product Type
2-Position Valve
Maximum Operating Temperature
200 °F (93 °C)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Actuator Style
Plunger (without Lever)
Mechanism Type
Self-Return
Exhaust Port
Vent
Weight
0.53 lb
