$164.95
$197.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

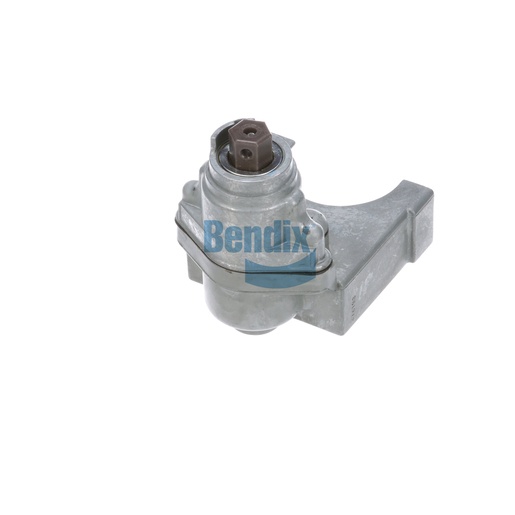

The Bendix Trailer Control Valve is an essential component designed to ensure reliable performance and safety in trailer braking systems. This valve regulates the air pressure supplied to the trailer brakes, providing the driver with precise control over braking action. Weighing only 1.0 kg, it is designed for easy installation while maintaining robust functionality. The valve's construction is optimized for durability, ensuring it can withstand the rigors of heavy-duty applications. With a maximum operating pressure of 80 PSI, this valve is engineered to perform effectively under demanding conditions, contributing to enhanced vehicle safety. When looking for high-quality braking components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring reliability and performance for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-014: Hand Control Valve - Air
Delivery Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-3B (2x)
Graduating Pressure Range
5 - 80 PSI
Final Delivery Pressure
80 PSI
Harmonized System (HS) Code
848120
Mounting Location
Column Mount
Country of Origin
Mexico
Mounting Clamp Included
No
Reverse Cam
No
Product Type
Self-Return (with Detent)
Body Material
Zinc
Weight
2.2 lb
